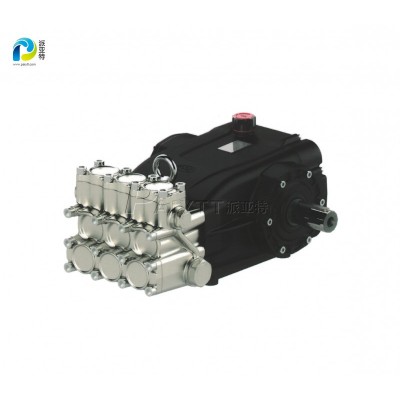

品牌:
意大利MAZZONI
产品特点:
• 磨削加工活塞,行程平稳,密封性好
• 工业型加强曲轴设计,更好传递扭矩
• 工业加厚型陶瓷柱塞组件,运行稳定
• 优化加大进排液阀尺寸设计
• 特殊合金材质连杆
• 高强度锻造不锈钢/普通材质液力端
• 双垫片密封设计,高温密封可达85度(部分泵型)
• 高阻力圆锥滚子轴承
• 外观设计美观、实用、耐用性强
进水温度限制 MAX INPUT WATER TEMPERATURE | 进水压力限制 MINIMAL INPUT PRESSURE | 进水口 INLET | 出水口 OUTLET | |||
65°C 149° F | 0.2 BAR 2.9 PSI | φ20 1/2” | φ20 1/2” | |||
φ30 1” | φ30 3/4” | |||||
φ40 11/4” | φ40 3/4” |
规格参数表:
型号 | 液力端 | 转速/流量 lt/min/gpm | 压力 | 功率 HP/Kw | 轴 φ40 | mm | 柱塞 | |||
1000rpm | 1450rpm | Bar | Psi | 1000rpm | 1450rpm | |||||
LM29500R | 普通材质 | 20/5.28 | 29/7.66 | 500 | 7252 | 25.97/19.24 | 37.66/27.9 | Destra /right | 80 | 20mm |
LM36500R | 25/6.60 | 36/9.5 | 500 | 7252 | 32.47/24.05 | 46.75/34.63 | Destra /right | 80 | 20mm | |
LM41500R | 30/7.92 | 41/10.82 | 500 | 7252 | 38.96/28.86 | 53.25/38.44 | Destra /right | 80 | 20mm | |
LM40280R | 不锈钢材质 | - | 40/10.56 | 280 | 4060 | - | 29.09/21.55 | Destra /right | 80 | 30mm |
LM61280R | - | 60/15.84 | 280 | 4060 | - | 43.64/32.32 | Destra /right | 80 | 30mm | |
LM80280R | - | 80/21.12 | 280 | 4060 | - | 58.18/43.10 | Destra /right | 80 | 30mm | |
LM45280R | 45/11.88 | - | 280 | 4060 | 32.73/24.24 | - | Destra /right | 80 | 30mm | |
LM60280R | 60/15.84 | - | 280 | 4060 | 43.64/32.32 | - | Destra /right | 80 | 30mm | |
LM80150R | 80/21.12 | - | 150 | 2175 | 31.17/23.09 | - | Destra /right | 80 | 40mm | |
LM100150R | 100/26.40 | - | 150 | 2175 | 38.96/28.86 | - | Destra /right | 80 | 40mm | |
LM120150R | 120/31.68 | - | 150 | 2175 | 46.75/34.63 | - | Destra /right | 80 | 40mm |
