进口孔板流量计原理及用途Principle and purpose
孔板流量计是将标准孔板与多参量差压变送器(或差压变送、温度变送器及压力变送器)配套组成的高量程比差压流量,充满管进口孔板流量计原理及用途.jpg道的流体流程管道内的节流装置,在节流件附近边成局部收缩,流速增加,在其上、下游两侧产生静压力差(如图)。在已知有关参数的条件下,根据流动连续件原理和伯努利方程可以推异出辨压与流量之间的关系(流量愈大,所产生的压差愈大)而求得流量。
Orifice plate flowmeter is a high range ratio differential pressure flow device composed of a standard orifice plate and a multi-parameter differential pressure transmitter (or differential pressure transmitter, temperature transmitter, and pressure transmitter). The throttling device in the fluid flow pipeline that is filled with the pipeline locally contracts near the throttling component, increases the flow rate, and generates a static pressure difference on both upstream and downstream sides (as shown in Figure 1). Under the condition that relevant parameters are known, the relationship between differential pressure and flow rate can be inferred based on the principle of flow continuity and Bernoulli equation (the larger the flow rate, the greater the pressure difference generated) to obtain the flow rate.
进口孔板流量计 Main features

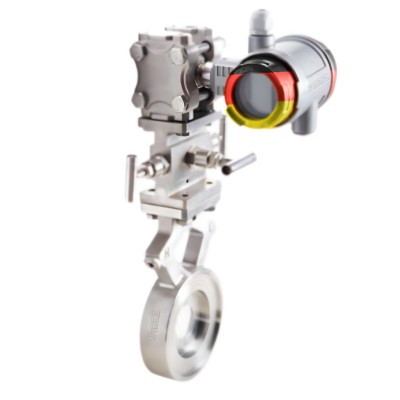

节流装置结构简单、牢固,性能稳定可靠,使用期限长 The throttling device has a simple and firm structure, stable and reliable performance, and a long service life进口孔板流量计2.jpg
应用范围广,全部单相流皆可测量,部分混相流亦可应用 Wide application range, all single-phase flows can be measured, and some mixed phase flows can also be applied
标准型节流装置无须实流校准,即可投用 The standard throttling device can be put into use without actual flow calibration
安装更简单,无须引压管,可直接接差压变送器和压力变送器 Installation is simpler, without the need for pressure pipes, and can be directly connected to differential pressure transmitters and pressure transmitters
采用进口单晶硅智能差压传感器 Adopting imported monocrystalline silicon intelligent differential pressure sensor
高精度,完善的自诊断功能 High precision and comprehensive self-diagnosis function
智能孔板流量计智能孔板流量计其量程可自编程调整 The range of the intelligent orifice flowmeter can be self programmable and adjusted
智能孔板流量计可同时显示累计流量、瞬时流量、压力、温度 The intelligent orifice flowmeter can simultaneously display cumulative flow rate, instantaneous flow rate, pressure, and temperature
具有在线、动态全补偿功能外,智能孔板流量计还具有自诊断、自行设定量程 In addition to online and dynamic full compensation functions, the intelligent orifice flowmeter also has self-diagnosis and self setting range
配有多种通讯接口 Equipped with multiple communication interfaces
稳定性高 High stability
量程范围宽、大于10:1 Wide range, greater than 10:1
