品牌：RETZ/我们一直致力于流体控制和测控领域的持续创新，始于2005……进口高粘度齿轮式流量计产品用途 Product use

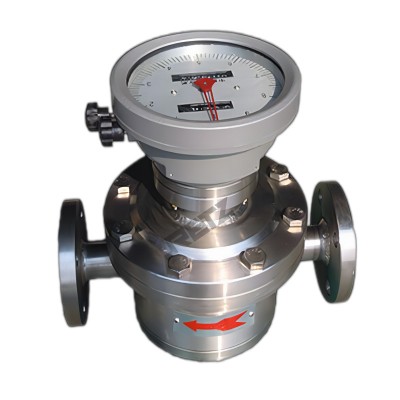

高粘度齿轮式流量计采用液体推动一对椭圆齿轮转动；每个腔体的容积是固定体积；齿轮转速引出，传感器发出同步脉冲计数，椭圆齿轮的转动通过磁性密封联轴器及传动减速机构传递给计数器直接指示出流经流量计的总量。若附加发信装置后，再配以电显示仪表可实现远传只是瞬时流量或累积流量。主要用于测量高粘度的介质，用于测量小管径的微小流量计量，广泛应用于石油、石化、天然气、化工、造纸等行业retz The gear flowmeter uses liquid to drive a pair of elliptical gears to rotate; The volume of each cavity is a fixed volume; The rotation speed of the gear is led out, and the sensor emits a synchronous pulse count. The rotation of the elliptical gear is transmitted to the counter through a magnetic sealed coupling and transmission reduction mechanism, directly indicating the total amount flowing through the flowmeter. If a signaling device is added and an electrical display instrument is used, remote transmission of only instantaneous or cumulative flow can be achieved. It is mainly used for measuring high viscosity media, and for measuring small pipe diameters in micro flow metering. It is widely used in industries such as petroleum, 进口高粘度齿轮式流量计4.jpgpetrochemical, natural gas, chemical industry, and paper making
进口高粘度齿轮式流量计主要特点 Main features
测量精度高、流量范围宽、重复性好 High measurement accuracy, wide flow range, and good repeatability
螺旋转子转动均匀，震动小，寿命长 The spiral rotor rotates evenly, with small vibration and long service life
对被测液体的粘度变化不敏感，尤其适合于粘度较高液体的测量 Not sensitive to changes in viscosity of the measured liquid, especially suitable for measuring liquids with higher viscosity
结构简单、外形尺寸小、重量轻 Simple structure, small overall size, and light weight
进口高粘度齿轮式流量计技术参数 Technical parameter
口 径 | 10~150mm; | |||
外壳材质 铝、不锈钢及中高压不锈钢、PPS、青铜等 | ||||
轴承材质 | 陶瓷、青铜、哈氏合金、碳化物、PPS、不锈钢等； | |||
轴的材质 316不锈钢； | ||||
O形环的材质 | VITON、氟橡胶、不锈钢、特氟隆 | |||
量程比 10:1,高达50:1; | ||||
精度 | ±1%和±0.5%,重复性±0.03%; | |||
安装要求 直管段要求：5D+3D,需加装过滤器； | ||||
黏度 | 高达1,000000CP; | |||
压力等级 高达100bar | ||||
耐温等级 | 高达-10~60℃ | |||
