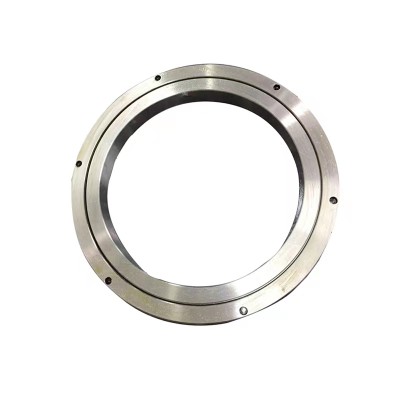

RE型(外圈一体、内圈分体)外形尺寸和RB型相同,但结构为外圈整体,内圈分为两片,适用于外圈旋转精度的要求高的场合.
RE型(外圈整体、内圈分体)
型号 Bearing Type | 主要尺寸Dimension | 轴肩尺寸 Shoulder Height | 基本额定载荷Basic Load Rating (Radial) | 质量Weight | ||||||
内径Inner Ring | 外径Outer Ring | 滚子节圆直径Roller Pitch Diameter | 高度Height | 倒角Chamfer | Cr | Cor | ||||
d | D | Dpw | B B1 | Rmin | ds | Dh | kN | kN | kg | |
RE 2008 | 20 | 36 | 29 | 8 | 0.5 | 23.5 | 30.5 | 3.23 | 3.1 | 0.04 |
RE 2508 | 25 | 41 | 34 | 8 | 0.5 | 28.5 | 35.5 | 3.63 | 3.83 | 0.05 |
RE 3010 | 30 | 55 | 43.5 | 10 | 0.6 | 37 | 47 | 7.35 | 8.36 | 0.12 |
RE3510 | 35 | 60 | 48.5 | 10 | 0.6 | 41 | 51.5 | 7.64 | 9.12 | 0.13 |
RE 4010 | 40 | 65 | 53.5 | 10 | 0.6 | 47.5 | 58 | 8.33 | 10.6 | 0.16 |
RE 4510 | 45 | 70 | 58.5 | 10 | 0.6 | 51 | 61.5 | 8.62 | 11.3 | 0.17 |
RE 5013 | 50 | 80 | 66 | 13 | 0.6 | 57.5 | 72 | 16.7 | 20.9 | 0.27 |
RE 6013 | 60 | 90 | 76 | 13 | 0.6 | 68 | 82 | 18 | 24.3 | 0.3 |
RE 7013 | 70 | 100 | 86 | 13 | 0.6 | 78 | 92 | 19.4 | 27.7 | 0.35 |
RE 8016 | 80 | 120 | 101.4 | 16 | 0.6 | 91 | 111 | 30.1 | 42.1 | 0.7 |
RE 9016 | 90 | 130 | 112 | 16 | 1 | 98 | 118 | 31.4 | 45.3 | 0.75 |
RE 10016 | 100 | 140 | 121.1 | 16 | 1 | 109 | 129 | 31.7 | 48.6 | 0.83 |
