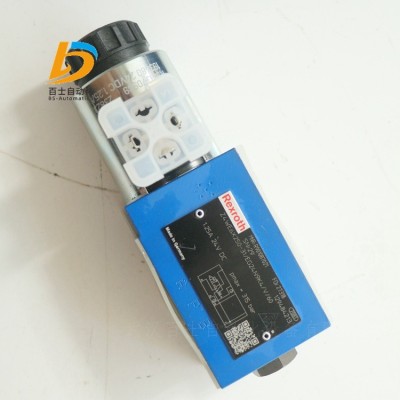

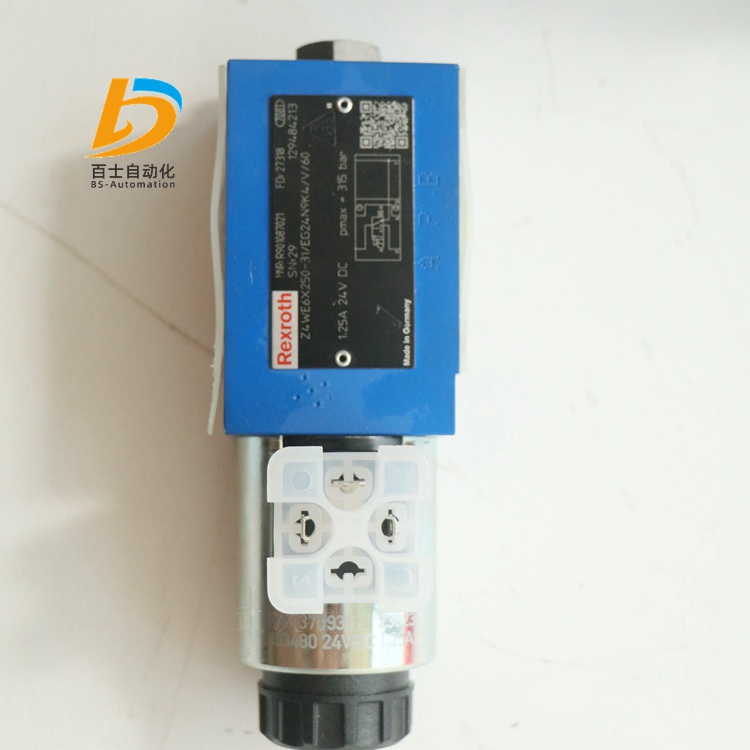

REXROTH电磁阀R901087021 Z4WE6X250-31/EG24N9K4/V/60
武汉百士自动化设备有限公司主营销售产品,产品实拍,原装正品,客户买的安心,用的放心。常用产品现
货供应,欢迎新老客户询价采购!
产品简介:
力士乐REXROTH带电磁启动的直动式方向滑阀
Z4WE 6
规格 6
组件系列 3X
大工作压力 315 bar
大流量 50 l/min
重量
单线圈1.2kg
双线圈1.6kg
温度范围 -20 … +50℃
特点
二位四通和三位四通方向截止阀
叠加阀
作为直通阀或短路阀
油口安装面,符合 ISO 4401-03-02-0-05(带或不带孔)
在油中开关的交流或直流电磁铁
可选择与 PWM 连接器(快速切换放大器,节能)搭配使用
辅助操纵装置,可选
阀芯位置监控,可选
当电压 > 50 VAC 或 > 75 VDC 时,CE 符合性符合低电压指令 2014/35/EU
Z4WE 型方向阀是电磁线圈操作式方向滑阀。该阀控制流体的启动、停止和方向。
该方向阀的基本构成为外壳、一个或两个线圈、控制阀芯以及两个复位弹簧。
在非操作状态下,控制阀芯通过复位弹簧 保持在中心位置或初始位置。通过湿式插脚线圈 操作控制阀芯。
液压系统必须正确通风,以确保能够发挥正常功能。
线圈 的力通过冲杆作用在控制阀芯上,并将其从静止位置推到所需的终位置。这样就释放了所需的流向 A② 至 A① 和 B② 至 B①。
线圈 断电后,控制阀芯由复位弹簧 推回到静止位置。
可选手动应急操作可在线圈不通电的情况下移动控制阀芯。
注意:
由于设计原理方面的原因,阀门难免会存在内部泄漏,且泄漏量会随着使用时间的增加而增加。
允许的冲击和振动载荷参见参数单 08012。
注意事项:
电磁阀在关闭期间会产生电压峰值。为了防止系统中出现电磁干扰以及阀门控制受到损坏,必须在系统侧提供干扰保护电路。或者,
也可以选择带有集成干扰保护电路的连接器。
注意事项:
建立电气连接时,必须正确连接保护接地导线 (PE )。
必须以减轻拉力的方式布线!
电缆束线圈只适用于安装的电缆。
在运行期间,连接器应锁定。在具有负载的正常运行期间,不得插入或断开。
保护接地导线横截面等于或大于电源的线路横截面。
阀门安装面必须连接到保护接地导线系统。
德国力士乐REXROTH电磁阀订货号和型号:
力士乐REXROTH二位四通和三位四通方向阀Z4WE 6
R902469544 Z4WE6E68-3X/EG24N9Z4QMAG24/V
R901160396 Z4WE6D24-3X/EG12N9K4
R900971516 Z4WE6D24-3X/EG205N9K4
R900937923 Z4WE6D24-3X/EG24N9K4
R901093910 Z4WE6D24-3X/EG24N9K4SO407
R901228124 Z4WE6D24-3X/EG24N9K4/V
R900785719 Z4WE6D24-3X/EG24NEXZ2
R900937693 Z4WE6D24-3X/EG24NK4
R901211022 Z4WE6D24-3X/EG96N9K4
R901211921 Z4WE6D24-3X/EW230N9K4
R987138262 Z4WE6D27-3X/EG24N9K4
R901434850 Z4WE6E131-3X/EG24NK4=PL
R900941536 Z4WE6E137-3X/EG24K4
R900947786 Z4WE6E137-3X/EG24K4/V
R900959245 Z4WE6E137-3X/EG24K4QMAG24
R900975026 Z4WE6E137-3X/EG24N9K4
R901217095 Z4WE6E137-3X/EG24N9K4/V
R900965044 Z4WE6E137-3X/EG24NK4
R900958814 Z4WE6E137-3X/EG96K4
R900970447 Z4WE6E137-3X/EG96K4/V
R901189370 Z4WE6E137-3X/EW230N9K4/V
R901208824 Z4WE6E144-3X/EG24N9K4QMAG24
R901434942 Z4WE6E146-3X/EW110N9K4
R901394440 Z4WE6E166-3X/EG24K4QMAG24
R901087019 Z4WE6E166-3X/EG24N9K4/V/60
R901329358 Z4WE6E166-3X/EG24N9K4/V/60SO86=KM
R901191041 Z4WE6E166-3X/EG96N9K4/V/60
R900248055 Z4WE6E51-3X/EG125N9K4QMAG24
R901028708 Z4WE6E51-3X/EG12N9K4
R901439574 Z4WE6E51-3X/EG205N4K4QMBG24
R901387756 Z4WE6E51-3X/EG205N9K4QMAG24
R901388014 Z4WE6E51-3X/EG205N9K4QMBG24
R900958420 Z4WE6E51-3X/EG24N9K4
R900730037 Z4WE6E51-3X/EG24N9K4/V
R900703301 Z4WE6E51-3X/EG24N9K4=CSA
R901019173 Z4WE6E51-3X/EG24N9K4QMAG24
R901293719 Z4WE6E51-3X/EG24N9K4QMBG24
R901433754 Z4WE6E51-3X/EG24NK4
R901228486 Z4WE6E51-3X/EG28N9K4QMAG24
R901091371 Z4WE6E51-3X/EG96N9K4
R900244071 Z4WE6E51-3X/EW110N9K4
R901007625 Z4WE6E51-3X/EW110N9K4QMAG24
R900249430 Z4WE6E51-3X/EW230N9K4
R900946121 Z4WE6E53-3X/EG24N9K4
R901404265 Z4WE6E54-3X/EG125N9K4
R901391858 Z4WE6E54-3X/EG24K4QMBG24
R901379445 Z4WE6E54-3X/EG24N9K4
R901435649 Z4WE6E54-3X/EG24N9K4QMBG24
R901392946 Z4WE6E62-3X/EG24K4
R901071794 Z4WE6E62-3X/EG24K4QR0G24S
R901327990 Z4WE6E63-3X/EG110N9K4
R900949245 Z4WE6E63-3X/EG125N9K4
R901028706 Z4WE6E63-3X/EG12N9K4
R900717224 Z4WE6E63-3X/EG12NK4=CSA
R901278717 Z4WE6E63-3X/EG205N5K4QMAG24/62
R901138802 Z4WE6E63-3X/EG205N9K4
R901036150 Z4WE6E63-3X/EG24K33LQMAG24
R901167764 Z4WE6E63-3X/EG24K33LQMAG24/62
R900962340 Z4WE6E63-3X/EG24K4
R900940791 Z4WE6E63-3X/EG24K4QMAG24
R901218266 Z4WE6E63-3X/EG24K4QMAG24/62
R900712121 Z4WE6E63-3X/EG24K4QMBG24
R901053982 Z4WE6E63-3X/EG24N9K33L
R901012003 Z4WE6E63-3X/EG24N9K33LSO407
R901035946 Z4WE6E63-3X/EG24N9K33LQMAG24
R900937595 Z4WE6E63-3X/EG24N9K4
R900978488 Z4WE6E63-3X/EG24N9K4SO407
R900952872 Z4WE6E63-3X/EG24N9K4/V
R900776185 Z4WE6E63-3X/EG24N9K4/VSO407
R901035950 Z4WE6E63-3X/EG24N9K4/V/60SO407
R900976091 Z4WE6E63-3X/EG24N9K4=CSA
R900706112 Z4WE6E63-3X/EG24N9K4K
R900933643 Z4WE6E63-3X/EG24N9K4QMAG24
R900748003 Z4WE6E63-3X/EG24N9K4QMAG24/V
R900934757 Z4WE6E63-3X/EG24N9K4QMBG24
R900746027 Z4WE6E63-3X/EG24N9K4QMBG24/V
R901241323 Z4WE6E63-3X/EG24N9K72L
R901366189 Z4WE6E63-3X/EG24N9K72LSO407
R901255278 Z4WE6E63-3X/EG24N9K72LQMAG24
R900741714 Z4WE6E63-3X/EG24NEXZ2
R900943505 Z4WE6E63-3X/EG24NK4
R901004551 Z4WE6E63-3X/EG24NK4=CSA
R900963337 Z4WE6E63-3X/EG24NK4=LB
R900749845 Z4WE6E63-3X/EG24NK4QMAG24
R901082598 Z4WE6E63-3X/EG24NK4QMAG24/V
R901048058 Z4WE6E63-3X/EG48N9K4
R901426330 Z4WE6E63-3X/EG96K4QMAG24/V
R900619454 Z4WE6E63-3X/EG96N9K4
R901149638 Z4WE6E63-3X/EG96N9K4/V
R900954010 Z4WE6E63-3X/EG96NK4
R901012521 Z4WE6E63-3X/EW110K4QMAG24
R900964347 Z4WE6E63-3X/EW110N9K4
R900941533 Z4WE6E63-3X/EW110N9K4/V
R900758878 Z4WE6E63-3X/EW110N9K4=CSA
R900952361 Z4WE6E63-3X/EW110NK4QMBG24
R901026729 Z4WE6E63-3X/EW115N9K4
R900950413 Z4WE6E63-3X/EW230K4
R901072268 Z4WE6E63-3X/EW230K4QMAG24
R900954391 Z4WE6E63-3X/EW230N9K4
R901145856 Z4WE6E63-3X/EW230N9K4QMAG24
R901316787 Z4WE6E63-3X/EW230N9K4QMBG24
R900949838 Z4WE6E63-3X/EW48N9K4
R901020875 Z4WE6E68-3X/EG110NK4
R901410194 Z4WE6E68-3X/EG125K4/V
R900959720 Z4WE6E68-3X/EG205K4QMAG24
R901060828 Z4WE6E68-3X/EG220N9K4
R901226535 Z4WE6E68-3X/EG24SO667
R901113796 Z4WE6E68-3X/EG24K33L
R900751583 Z4WE6E68-3X/EG24K4
R900939990 Z4WE6E68-3X/EG24K4
R900941535 Z4WE6E68-3X/EG24K4/V
R901185456 Z4WE6E68-3X/EG24K4/V=CSA
R900953228 Z4WE6E68-3X/EG24K4QMAG24
R901437748 Z4WE6E68-3X/EG24K4QMAG24/V
R901159663 Z4WE6E68-3X/EG24K4QMBG24
R901324146 Z4WE6E68-3X/EG24K72L
R900941212 Z4WE6E68-3X/EG24N9K4
R901091389 Z4WE6E68-3X/EG24N9K4SO407
R900936096 Z4WE6E68-3X/EG24N9K4/V
R901091077 Z4WE6E68-3X/EG24N9K4/V/60
R900939818 Z4WE6E68-3X/EG24N9K4QMAG24
R900962572 Z4WE6E68-3X/EG24N9K4QMAG24/V
R900939917 Z4WE6E68-3X/EG24N9K4QMAG24=LB
R900951080 Z4WE6E68-3X/EG24N9K4QMBG24
R900969984 Z4WE6E68-3X/EG24NK4
R901415365 Z4WE6E68-3X/EG24NK4/60
R900978059 Z4WE6E68-3X/EG24NK4=CSA
R901010653 Z4WE6E68-3X/EG24NK4=KM
R900942244 Z4WE6E68-3X/EG24NK4=LB
R901037001 Z4WE6E68-3X/EG24XNZ4
R901149916 Z4WE6E68-3X/EG24XNZ4/V
R901422236 Z4WE6E68-3X/EG48N9K4
R901329056 Z4WE6E68-3X/EG48N9K4/V
R900934856 Z4WE6E68-3X/EG96K4
R901083242 Z4WE6E68-3X/EG96K4/V
R900967970 Z4WE6E68-3X/EG96K4QMAG24
R900246783 Z4WE6E68-3X/EG96N9K4
R901150496 Z4WE6E68-3X/EG96N9K4/V
R901018641 Z4WE6E68-3X/EW100NK4
R900945999 Z4WE6E68-3X/EW110K4QMAG24
R900941777 Z4WE6E68-3X/EW110N9K4
R978019454 Z4WE6E68-3X/EW110N9K4/V
R900759174 Z4WE6E68-3X/EW110N9K4=CSA
R900941534 Z4WE6E68-3X/EW110N9K4QMAG24
R900962341 Z4WE6E68-3X/EW230N9K4
R901104517 Z4WE6E68-3X/EW230N9K4/V
R901400560 Z4WE6X163-3X/EG24K4QMAG24/VSO60
R901352433 Z4WE6X181-3X/EG24N9K4SO60
R901392755 Z4WE6X183-3X/EG110K4QMBG24SO60
R901217808 Z4WE6X250-3X/EG205N9K4/V/60
R901246088 Z4WE6X250-3X/EG24K4QMAG24
R901237545 Z4WE6X250-3X/EG24K4QMBG24
R901193783 Z4WE6X250-3X/EG24K72LQMBG24SO407
R901291614 Z4WE6X250-3X/EG24N9K4/60
R901087021 Z4WE6X250-3X/EG24N9K4/V/60
