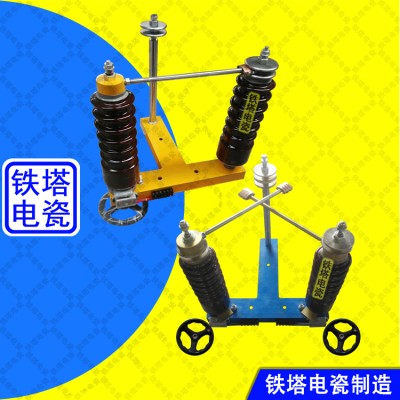

静电除尘高压隔离开关它的作用是做为除尘器各电场高压电源切换、转移和接地之用。其型式有二点式、三点式、四点式。电除尘器直流高压隔离开关 ,安置在电除尘器和高压整流变压器之间,在无载的环境下,用于高压回路的切换,开关分为:单极式手动(左,右) 双极式手动,四极式手动,四点式软轴式,四点电动式,也可以按用户要求定制。安置在高压硅整流器与电除尘器之间,在无负载的环境下,用于电除尘器高压回路的切换.转移和接地,适应环境海拔不高出2000米,环境温度不高于±50℃,不低于-40℃,氛围相对湿度≤95%(30±2℃),安置环境应清洁干燥无导电灰尘土,不含有腐化金属的气体及爆炸伤害的介质存在,并且无剧烈振动。
The electrostatic precipitator high-voltage isolation switch is used for switching, transferring, and grounding the high-voltage power supply of each electric field of the precipitator. Its types include two point type, three point type, and four point type. The DC high-voltage isolation switch for the electrostatic precipitator is installed between the electrostatic precipitator and the high-voltage rectifier transformer. It is used for switching the high-voltage circuit in a no-load environment. The switches are divided into: single-pole manual (left, right) bipolar manual, four-pole manual, four-point flexible shaft type, and four-point electric type, which can also be customized according to user requirements. It is installed between the high-voltage silicon rectifier and the electrostatic precipitator, and is used for switching, transferring, and grounding the high-voltage circuit of the electrostatic precipitator in a no-load environment. It is suitable for environments with an altitude not higher than 2000 meters, an ambient temperature not higher than ± 50 ℃, not lower than - 40 ℃, and an ambient relative humidity of ≤ 95% (30 ± 2 ℃). The installation environment should be clean, dry, and free of conductive dust, gases containing corrosive metals, and explosive media, and free of severe vibration.
