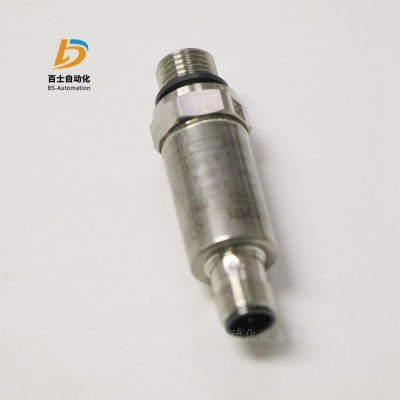

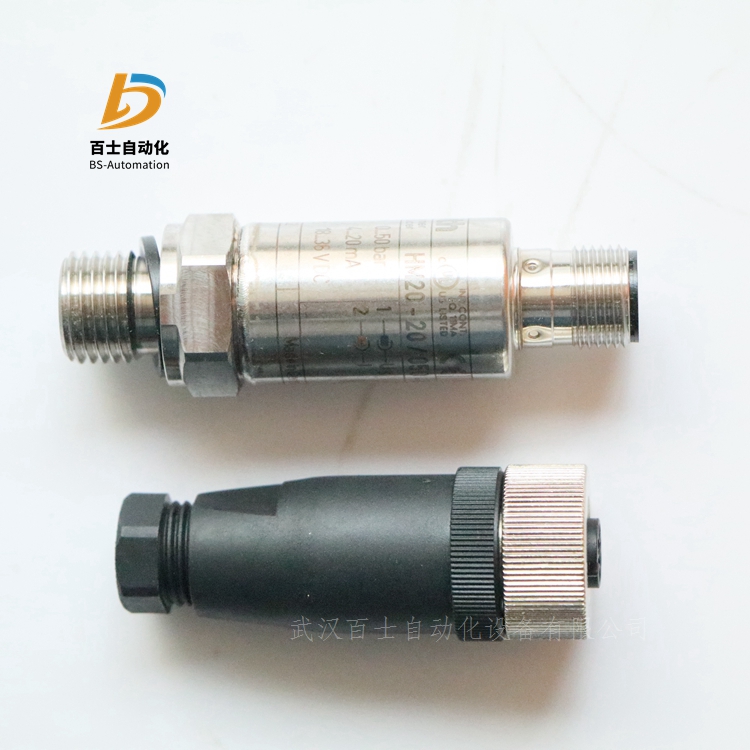

力士乐品牌HM20-20/050-C-K35 R901342022压力传感器
武汉百士自动化设备有限公司主营销售产品，产品实拍，原装正品，客户买的安心，用的放心。常用产品现
货供应，欢迎新老客户询价采购！
产品简介：
力士乐适合液压应用的压力传感器
HM20
组件系列 2X
测量液压系统压力
8 个测量范围，大 630 bar
带薄膜测量单元的传感器
与介质接触的组件由不锈钢制成
高爆裂压力，反向极性、过电压和短路保护，确保操作安全
特性曲线误差 <0.5 %
非重复性 <±0.05 %
环境温度 –40 … +85 °C
船用认证 DNV 适用于所有带电流输出的型号
力士乐REXROTH压力传感器订货信息：
HM20-2X/400-C-K35-N
1、类型
HM20 →测压变换器
2、生产系列号
2X →设备系列 20 到 29（20 到 29：安装尺寸和插脚分配不变）
3、大压力值
10 →10 bar
50 →50 bar
100 →100 bar
160 →160 bar
250 →250 bar
315 →315 bar
400 →400 bar
630 →630 bar
4、输出类型
C →电流输出端 4 至 20 mA（获得船用认证 DNV）
H →电压输出端 0.1 至 10 V
5、插头类型
K35 →设备插头，4 针，M12 x 1
N →节流元件（相当于 0.3 mm喷嘴）
电缆束或电缆插座不在供货范围内；请另行订购
技术数据：
重量：0.06kg
额定温度范围：-25 … +80℃
环境温度范围：-40 … +85℃
存储温度范围：-40 … +80℃
压力介质：HL、HLP、HFC、氮气（大允许 300 bar）
介质温度范围：-40 … +90℃
正弦试验，符合 DIN EN 60068-2-6：10 ... 2000 Hz/大 10 g/10 个周期/3 个轴
噪音测试符合 DIN EN 60068-2-64：20 … 2000 Hz / 14 g RMS / 24 h / 3 个轴
运输冲击符合 DIN EN 60068-2-27：15 g/11 ms/3 个轴
压力油口（确保彻底排气）：螺纹连接 G1/4 符合 DIN 3852 形式 E
外壳材料：V4A (1.4404)、PEI、HNB
材料与测量元件的过程连接：1.4542 (17-4 PH / 630); 密封圈 NBR
节流元件：在过程连接的压力通道中。相当于 0.3 mm 的喷嘴，可降低因压力峰值或气蚀等高动态效应而造成损坏的风险。
节流材料：1.4305
紧固扭矩：
液压接口
<400 bar：20 … 25Nm
≥400 bar：25 … 30Nm
连接插头（如果不存在拧紧扭矩规格，建议使用。）：0.6 … 1.5Nm
使用寿命：6 千万加载次数或 60000 h
电磁兼容性 (EMC)
EN 61000-6-2 / EN 61326-2-3
EN 61000-4-2 静电放电抗干扰性检测：4 CD / 8 AD 带有 BWK B（kV）
EN 61000-4-3 射频电磁波抗干扰检测：10V/m (80 … 2700 MHz)，带有 BWK A
EN 61000-4-4 电性快速脉冲群抗干扰检测：2 带有 BWK B（kV）
EN 61000-4-5 浪涌雷击测试：1 带有 BWK B（kV）
EN 61000-4-6 HF conducted：10V (150 kHz … 80 MHz)，带有 BWK A
EN 61000-4-8 电源频率磁场抗干扰检测 50/60 Hz：100A/m，带有 BWK A
EN 61000-4-9 电源频率磁场脉冲抗干扰检测：1000A/m 带有 BWK A
EN 61000-6-3 / EN 61326-2-3
EN 55016-2-1 干扰电压检测：0.15 … 30MHz（等级 B，EN 55022）
EN 55016-2-3 无线电干扰场强检测：30 … 1000MHz（等级 B, EN 55022）
电气连接：连接器，4 极 M12 x 1，外壳上
防护等级符合 EN 60529 标准：IP65 / IP67（如果使用的是适合且正确安装的连接插头。）
符合性：
CE：根据 EMC 指令
UKCA：根据 "UK EMC Regulations
输入：
电源：：24V
电流消耗：≤ 12mA
绝缘电阻：> 100MΩ(500 VDC)
输出：
输出信号：
电流：4 … 20mA
电压：0.1 … 10V
设置时间 (10 ... 90 %)：< 1ms
特性曲线误差（在整体测量范围内，包括非线性、滞后、零电位和端值偏差，符合 IEC 61298-2 规定的测量偏差要求）：< 0.5%
温度系数
零位和范围
额定温度范围内：< 0.1%/10 K
超出额定温度范围：< 0.2%/10 K
特定条件下的长期漂移（1 年）：< ± 0.1%
德国力士乐REXROTH压力传感器订货号和型号：
力士乐REXROTH液压应用压力传感器
0811405540 HM18-1X/210-V-S/V0/0
0811405539 HM18-1X/160-C-B/V0/0
R901364927 HM20-2X/10-C-K35
R901371391 HM20-2X/10-H-K35
R901342024 HM20-2X/100-C-K35
R901407030 HM20-2X/100-F-K35
R901342025 HM20-2X/100-H-K35
R901431625 HM20-2X/100-H-K35+ZC0067
R901342040 HM20-2X/125-F-C19-0,16
R901381345 HM20-2X/160-C-K35
R901365994 HM20-2X/160-F-C15-0,25-V
R901381347 HM20-2X/160-H-K35
R901342026 HM20-2X/250-C-K35
R901396767 HM20-2X/250-C-K35-V
R901365996 HM20-2X/250-F-C15-0,25-V
R901342041 HM20-2X/250-F-C19-0,16
R901342027 HM20-2X/250-H-K35
R901456333 HM20-2X/250-H-K35-N
R901342029 HM20-2X/315-C-K35
R901342038 HM20-2X/315-F-C13-0,5
R901434727 HM20-2X/315-F-C19-0,16
R901342030 HM20-2X/315-H-K35
R901342033 HM20-2X/400-C-K35
R901295669 HM20-1X/400-C-K35
R901456334 HM20-2X/400-C-K35-N
R901342043 HM20-2X/400-F-C19-0,16
R901342034 HM20-2X/400-H-K35
R901295670 HM20-1X/400-H-K35
R901431631 HM20-2X/400-H-K35+ZC0067
R901342022 HM20-2X/50-C-K35
R901365993 HM20-2X/50-F-C15-0,25-V
R901342023 HM20-2X/50-H-K35
R901431623 HM20-2X/50-H-K35+ZC0067
R901342042 HM20-2X/63-F-C19-0,16
R901342035 HM20-2X/630-C-K35
R901342079 HM20-2X/630-F-C19-0,16
R901342036 HM20-2X/630-H-K35
R901431633 HM20-2X/630-H-K35+ZC0067
R901364927 HM20-22/10-C-K35
R901371391 HM20-22/10-H-K35
R901342024 HM20-22/100-C-K35
R901407030 HM20-22/100-F-K35
R901342025 HM20-22/100-H-K35
R901431625 HM20-22/100-H-K35+ZC0067
R901342040 HM20-22/125-F-C19-0,16
R901381345 HM20-22/160-C-K35
R901365994 HM20-22/160-F-C15-0,25-V
R901381347 HM20-22/160-H-K35
R901342026 HM20-22/250-C-K35
R901396767 HM20-22/250-C-K35-V
R901365996 HM20-22/250-F-C15-0,25-V
R901342041 HM20-22/250-F-C19-0,16
R901342027 HM20-22/250-H-K35
R901456333 HM20-22/250-H-K35-N
R901342029 HM20-22/315-C-K35
R901342038 HM20-22/315-F-C13-0,5
R901434727 HM20-22/315-F-C19-0,16
R901342030 HM20-22/315-H-K35
R901342033 HM20-22/400-C-K35
R901295669 HM20-1X/400-C-K35
R901456334 HM20-22/400-C-K35-N
R901342043 HM20-22/400-F-C19-0,16
R901342034 HM20-22/400-H-K35
R901295670 HM20-1X/400-H-K35
R901431631 HM20-22/400-H-K35+ZC0067
R901342022 HM20-22/50-C-K35
R901365993 HM20-22/50-F-C15-0,25-V
R901342023 HM20-22/50-H-K35
R901431623 HM20-22/50-H-K35+ZC0067
R901342042 HM20-22/63-F-C19-0,16
R901342035 HM20-22/630-C-K35
R901342079 HM20-22/630-F-C19-0,16
R901342036 HM20-22/630-H-K35
R901431633 HM20-22/630-H-K35+ZC0067
R901364927 HM20-20/10-C-K35
R901371391 HM20-20/10-H-K35
R901342024 HM20-20/100-C-K35
R901407030 HM20-20/100-F-K35
R901342025 HM20-20/100-H-K35
R901431625 HM20-20/100-H-K35+ZC0067
R901342040 HM20-20/125-F-C19-0,16
R901381345 HM20-20/160-C-K35
R901365994 HM20-20/160-F-C15-0,25-V
R901381347 HM20-20/160-H-K35
R901342026 HM20-20/250-C-K35
R901396767 HM20-20/250-C-K35-V
R901365996 HM20-20/250-F-C15-0,25-V
R901342041 HM20-20/250-F-C19-0,16
R901342027 HM20-20/250-H-K35
R901456333 HM20-20/250-H-K35-N
R901342029 HM20-20/315-C-K35
R901342038 HM20-20/315-F-C13-0,5
R901434727 HM20-20/315-F-C19-0,16
R901342030 HM20-20/315-H-K35
R901342033 HM20-20/400-C-K35
R901295669 HM20-11/400-C-K35
R901456334 HM20-20/400-C-K35-N
R901342043 HM20-20/400-F-C19-0,16
R901342034 HM20-20/400-H-K35
R901295670 HM20-11/400-H-K35
R901431631 HM20-20/400-H-K35+ZC0067
R901342022 HM20-20/50-C-K35
R901342022 HM20-20/050-C-K35
R901365993 HM20-20/50-F-C15-0,25-V
R901342023 HM20-20/50-H-K35
R901431623 HM20-20/50-H-K35+ZC0067
R901342042 HM20-20/63-F-C19-0,16
R901342035 HM20-20/630-C-K35
R901342079 HM20-20/630-F-C19-0,16
R901342036 HM20-20/630-H-K35
R901431633 HM20-20/630-H-K35+ZC0067
R901364927 HM20-21/10-C-K35
R901371391 HM20-21/10-H-K35
R901342024 HM20-21/100-C-K35
R901407030 HM20-21/100-F-K35
R901342025 HM20-21/100-H-K35
R901431625 HM20-21/100-H-K35+ZC0067
R901342040 HM20-21/125-F-C19-0,16
R901381345 HM20-21/160-C-K35
R901365994 HM20-21/160-F-C15-0,25-V
R901381347 HM20-21/160-H-K35
R901342026 HM20-21/250-C-K35
R901396767 HM20-21/250-C-K35-V
R901365996 HM20-21/250-F-C15-0,25-V
R901342041 HM20-21/250-F-C19-0,16
R901342027 HM20-21/250-H-K35
R901456333 HM20-21/250-H-K35-N
R901342029 HM20-21/315-C-K35
R901342038 HM20-21/315-F-C13-0,5
R901434727 HM20-21/315-F-C19-0,16
R901342030 HM20-21/315-H-K35
R901342033 HM20-21/400-C-K35
R901295669 HM20-11/400-C-K35
R901456334 HM20-21/400-C-K35-N
R901342043 HM20-21/400-F-C19-0,16
R901342034 HM20-21/400-H-K35
R901295670 HM20-11/400-H-K35
R901431631 HM20-21/400-H-K35+ZC0067
R901342022 HM20-21/50-C-K35
R901342022 HM20-21/ 50-C-K35
R901365993 HM20-21/50-F-C15-0,25-V
R901342023 HM20-21/50-H-K35
R901431623 HM20-21/50-H-K35+ZC0067
R901342042 HM20-21/63-F-C19-0,16
R901342035 HM20-21/630-C-K35
R901342079 HM20-21/630-F-C19-0,16
R901342036 HM20-21/630-H-K35
R901431633 HM20-21/630-H-K35+ZC0067
R901364927 HM20-1X/10-C-K35
R901371391 HM20-1X/10-H-K35
R901342024 HM20-1X/100-C-K35
R901407030 HM20-1X/100-F-K35
R901342025 HM20-1X/100-H-K35
R901431625 HM20-1X/100-H-K35+ZC0067
R901342040 HM20-1X/125-F-C19-0,16
R901381345 HM20-1X/160-C-K35
R901365994 HM20-1X/160-F-C15-0,25-V
R901381347 HM20-1X/160-H-K35
R901342026 HM20-1X/250-C-K35
R901396767 HM20-1X/250-C-K35-V
R901365996 HM20-1X/250-F-C15-0,25-V
R901342041 HM20-1X/250-F-C19-0,16
R901342027 HM20-1X/250-H-K35
R901456333 HM20-1X/250-H-K35-N
R901342029 HM20-1X/315-C-K35
R901342038 HM20-1X/315-F-C13-0,5
R901434727 HM20-1X/315-F-C19-0,16
R901342030 HM20-1X/315-H-K35
R901342033 HM20-1X/400-C-K35
R901295669 HM20-1X/400-C-K35
R901456334 HM20-1X/400-C-K35-N
R901342043 HM20-1X/400-F-C19-0,16
R901342034 HM20-1X/400-H-K35
R901295670 HM20-1X/400-H-K35
R901431631 HM20-1X/400-H-K35+ZC0067
R901342022 HM20-1X/50-C-K35
R901365993 HM20-1X/50-F-C15-0,25-V
R901342023 HM20-1X/50-H-K35
R901431623 HM20-1X/50-H-K35+ZC0067
R901342042 HM20-1X/63-F-C19-0,16
R901342035 HM20-1X/630-C-K35
R901342079 HM20-1X/630-F-C19-0,16
R901342036 HM20-1X/630-H-K35
R901431633 HM20-1X/630-H-K35+ZC0067
R901364927 HM20-10/10-C-K35
R901371391 HM20-10/10-H-K35
R901342024 HM20-10/100-C-K35
R901407030 HM20-10/100-F-K35
R901342025 HM20-10/100-H-K35
R901431625 HM20-10/100-H-K35+ZC0067
R901342040 HM20-10/125-F-C19-0,16
R901381345 HM20-10/160-C-K35
R901365994 HM20-10/160-F-C15-0,25-V
R901381347 HM20-10/160-H-K35
R901342026 HM20-10/250-C-K35
R901396767 HM20-10/250-C-K35-V
R901365996 HM20-10/250-F-C15-0,25-V
R901342041 HM20-10/250-F-C19-0,16
R901342027 HM20-10/250-H-K35
R901456333 HM20-10/250-H-K35-N
R901342029 HM20-10/315-C-K35
R901342038 HM20-10/315-F-C13-0,5
R901434727 HM20-10/315-F-C19-0,16
R901342030 HM20-10/315-H-K35
R901342033 HM20-10/400-C-K35
R901295669 HM20-10/400-C-K35
R901456334 HM20-10/400-C-K35-N
R901342043 HM20-10/400-F-C19-0,16
R901342034 HM20-10/400-H-K35
R901295670 HM20-10/400-H-K35
R901431631 HM20-10/400-H-K35+ZC0067
R901342022 HM20-10/50-C-K35
R901365993 HM20-10/50-F-C15-0,25-V
R901342023 HM20-10/50-H-K35
R901431623 HM20-10/50-H-K35+ZC0067
R901342042 HM20-10/63-F-C19-0,16
R901342035 HM20-10/630-C-K35
R901342079 HM20-10/630-F-C19-0,16
R901342036 HM20-10/630-H-K35
R901431633 HM20-10/630-H-K35+ZC0067
R901364927 HM20-11/10-C-K35
R901371391 HM20-11/10-H-K35
R901342024 HM20-11/100-C-K35
R901407030 HM20-11/100-F-K35
R901342025 HM20-11/100-H-K35
R901431625 HM20-11/100-H-K35+ZC0067
R901342040 HM20-11/125-F-C19-0,16
R901381345 HM20-11/160-C-K35
R901365994 HM20-11/160-F-C15-0,25-V
R901381347 HM20-11/160-H-K35
R901342026 HM20-11/250-C-K35
R901396767 HM20-11/250-C-K35-V
R901365996 HM20-11/250-F-C15-0,25-V
R901342041 HM20-11/250-F-C19-0,16
R901342027 HM20-11/250-H-K35
R901456333 HM20-11/250-H-K35-N
R901342029 HM20-11/315-C-K35
R901342038 HM20-11/315-F-C13-0,5
R901434727 HM20-11/315-F-C19-0,16
R901342030 HM20-11/315-H-K35
R901342033 HM20-11/400-C-K35
R901295669 HM20-11/400-C-K35
R901456334 HM20-11/400-C-K35-N
R901342043 HM20-11/400-F-C19-0,16
R901342034 HM20-11/400-H-K35
R901295670 HM20-11/400-H-K35
R901431631 HM20-11/400-H-K35+ZC0067
R901342022 HM20-11/50-C-K35
R901365993 HM20-11/50-F-C15-0,25-V
R901342023 HM20-11/50-H-K35
R901431623 HM20-11/50-H-K35+ZC0067
R901342042 HM20-11/63-F-C19-0,16
R901342035 HM20-11/630-C-K35
R901342079 HM20-11/630-F-C19-0,16
R901342036 HM20-11/630-H-K35
R901431633 HM20-11/630-H-K35+ZC0067
0811405550 HM18-1X/200/V1/0
0811405545 HM18-1X/210-C-B/V0/0
0811405543 HM18-1X/210-C-R/V0/0
0811405541 HM18-1X/210-C-S/V0/0
0811405552 HM18-1X/210-D-R/V0/0
0811405531 HM18-1X/210-V-R/V0/0
0811405540 HM18-1X/210-V-S/V0/0
0811405559 HM18-1X/315-V-B/V0/0
0811405546 HM18-1X/350-C-B/V0/0
0811405544 HM18-1X/350-C-R/V0/0
0811405542 HM18-1X/350-C-S/V0/0
0811405553 HM18-1X/350-D-R/V0/0
0811405535 HM18-1X/350-N-B/V0/0
0811405557 HM18-1X/350-N-S/V0/0
0811405538 HM18-1X/350-N-S/V0/0
0811405532 HM18-1X/350-V-R/V0/0
0811405547 HM18-1X/350-V-S/V0/0
0811405556 HM18-1X/060-C-R/V0/0
0811405549 HM18-1X/060-C-S/V0/0
0811405533 HM18-1X/060-V-S/V0/0
0811405548 HM18-1X/100-C-S/V0/0
0811405537 HM18-1X/100-N-S/V0/0
0811405554 HM18-1X/100-V-S/V0/0
0811405539 HM18-1X/160-C-B/V0/0
0811405551 HM18-1X/160/V1/0
0811405534 HM18-1X/200-N-B/V0/0
0811405536 HM18-1X/200-N-S/V0/0
